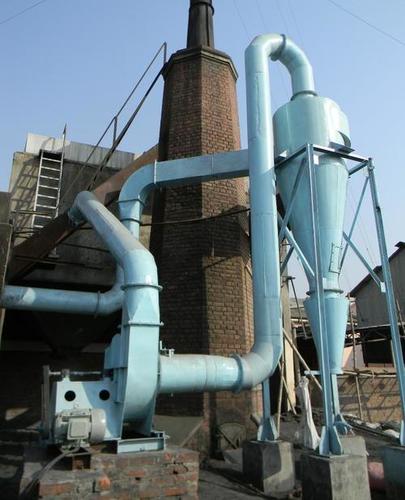

Cyclone Separator

Cyclone Separator
Cyclone Separator
Product Code : 01
Product Description

We are counted as a prominent entity in this domain affianced in manufacturing, exporting and supplying a quality approved Multi Cyclone Separator. known for its hassle free operation, provided separator is manufactured by utilizing sophisticated techniques under the supervision of adept professionals. It is used for filtering out the unwanted materials from prospective fluid and solid materials. Moreover, the offered Cyclone Separator can be availed from us in bulk at cost effective prices.


Cyclone Separator makes use of centrifugal force to retain and collect solid particles or condensate from a gaseous stream. The stainless steel construction of the product minus any filter requires negligible maintenance and ensures fail safe and fire proof operations in cases of any spark without leading to combustion. The separation efficiency of the separator is excellent (90% in particle size of 10 microns or greater). In cases where the dust or chips are quite hot to handle, these separators give reliable use, operating without a glitch.

Main advantages of the product are:

  • Processes generating sparks do not pose a problem as there is no combustible item like filters
  • Can efficiently handle hot chips and dust
  • Quick installation with low operating cost
  • Low maintenance construction/ filters do not require periodic cleaning
  • Gives reliable operations when installed as per guidelines

Other Attributes:

  • High durability
  • Excellent rotational wheels
  • Low power consumption
  • Easy to carry


  • Sand Particles Removal: 0.1mm
  • Max partition diameter: 2mm
  • Desanding efficiency: >96%
  • Head Loss: Less Than 0.05MPa
  • Min. Capacity: 5,000 Nm3/hr
  • Temp.: 150 Deg C
  • Pressure: 175mm
  • Material: Mild Steel/Stainless Steel
